VIX Series

VIX Series
Packaged Vertical Firetube Design (fully submerged tubes)
Vertical fire-tube design features high efficient X-ID Finned Fire-Tubes. Skid mounted packaged systems install easily. VIX Series offers a smaller foot print than most typical vertical boilers.
Horsepower:
30-125HP
MBTU/HR:
1,004-4,184MBTU/HR
Steam To:
350PSI
HOT WATER TO:
160PSI
Available from 10 to 80 HP, 30-125 BHP,15-300 steam, 30-160 hot water.
  • Totally new design industrial grade construction, 2-Pass fire tube design with enhanced heat transfer features. The VIX Series can offer higher efficiencies than standard vertical boilers. It's 100% water backed and built to deliver years of reliable service.
  • No burned-out side walls primary flue gases pass via water backed heat transfer tubes. No refractory backed finned passages to burn out.
  • Smaller foot print... more than 50% of standard vertical boilers.
  • Extended heating surface the VIX Series optimizes heat transfer with technology advanced fire tubes. These ultra-efficient tubes capture and transfer heat well beyond the curve of standard fire tubes, eliminating the need for turbulator inserts required for achieving optimal efficiencies.
  • Easy access to burner and eye-high control panel. All valves and controls located within reach.

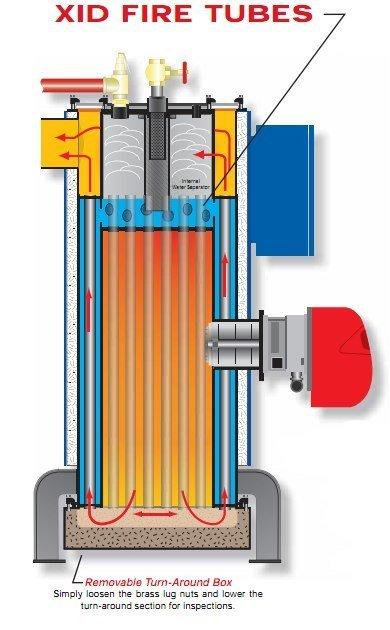

  • Removable turn-around box. Simply loosen the lug nuts and lower the turn-around section for easy inspection.
  • Innovative vessel design constant calm water levels with water-to-steam stabilization features.
  • Large steam chamber with internal water separator ensures “dry" highest quality steam.
